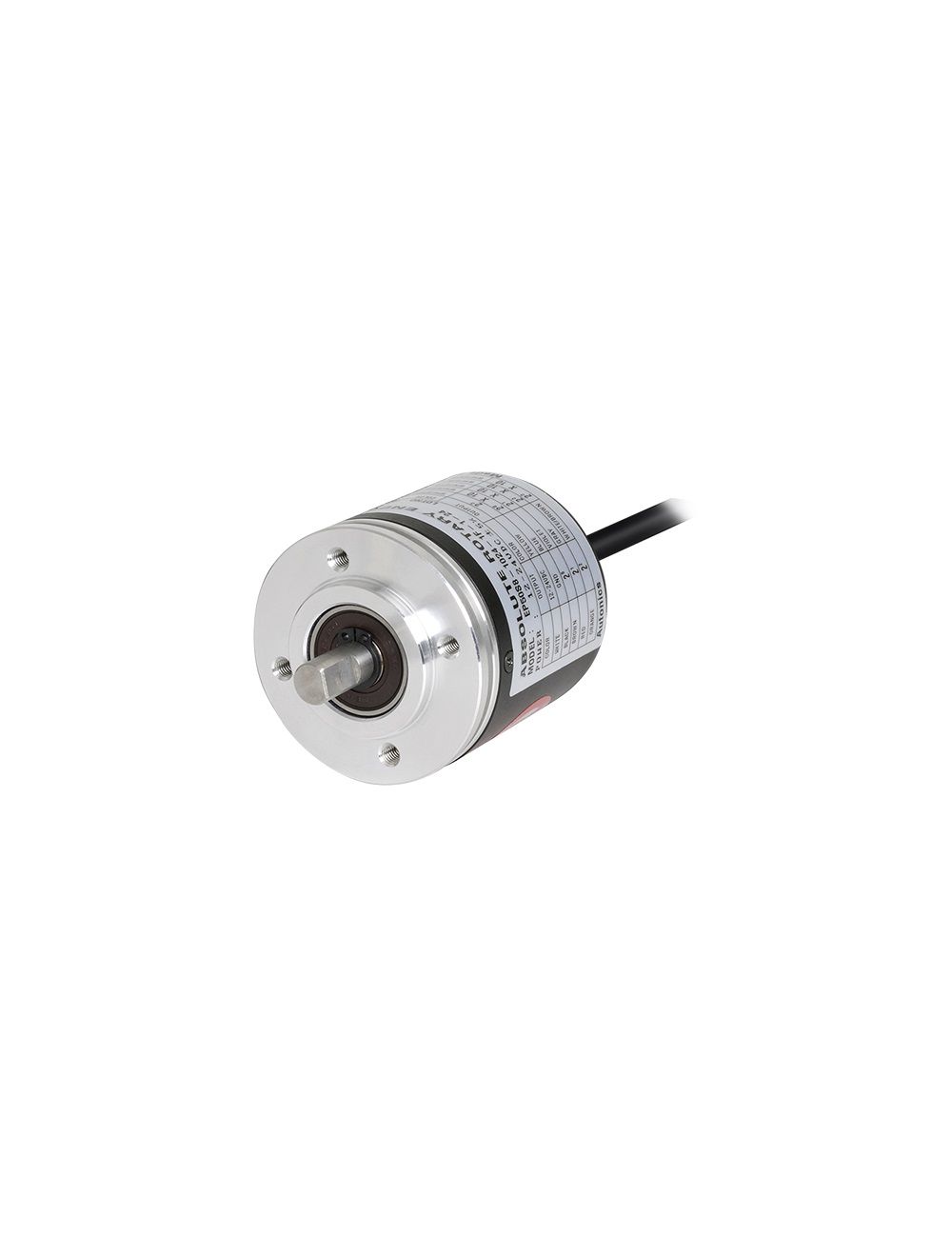

Supply of high-performance, efficiency and reliability Autonics Rotary Encoder EP50S8-720-2R-P-24, Autonics Encoder, Encoder, Okplazas, industrial products from okplazas industrial supply, Autonics encoders can satisfy various needs.

Shaft outer diameter: Ø8mm

Maximum response frequency: 35kHz

Maximum allowable speed: 3000rpm

Starting torque: Max. 70gf.cm (max. 0.0069N.m)

Resolution: 720(P/R)

Rotation direction: CCW direction output value increases

Control output: PNP open collector

Power supply voltage: 12-24VDC ±5% (ripple P-P: Max.5%)

Connection cable type: Axial wiring lead type

Protection level: IP64

data sheet

Shaft outer diameter Ø8mm

Maximum response frequency 35kHz

Maximum allowable speed 3000rpm

Starting torque Max. 70gf.cm (max. 0.0069N.m)

Resolution 720(P/R)

Output code system Binary code

Rotation direction CCW direction output value increase

Control output PNP open collector

Power supply voltage 12-24VDC ±5% (ripple P-P: Max.5%)

Connection cable type Axial wiring lead type

Protection grade IP64

Certification CE

Ambient temperature -10~70℃, storage: -25~85℃

Ambient humidity 35~85%RH, storage: 35~90%RH

Accessories Bracket, Coupling

Weight about 482g (about 398g)

※In the case of parallel connection, when selecting the resolution, please ensure that the maximum response speed is lower than or equal to ~maximum allowable speed

[Maximum response speed (rpm)=Maximum response frequency/resolution × 60sec]

※The weight includes the outer packaging, and the net weight of the product is in parentheses.

※Environmental characteristics are non-icing and dew condensation state.
