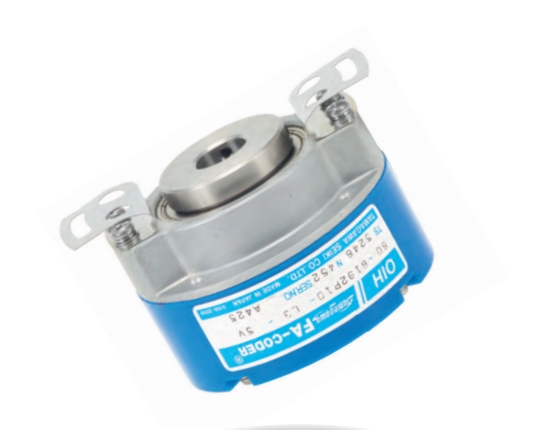

OIH 60 Series

Incremental / hollow shaft type

■ Features FEATURES

• Outer diameter φ 60mm / Mating shaft diameter φ 20mm
• Supports up to φ20 hollow shaft

Please contact our sales office.

• Resolution: 1,000 to 8,192 C / T
• Easy to install
• Outside Diameter: φ 48mm / Motor Shaft Diameter: φ 8mm
• Hollow shaft available up to φ 20

Please contact our sales divisions.

• Resolution: 1,000-8,192 C / T
• Easy to attach

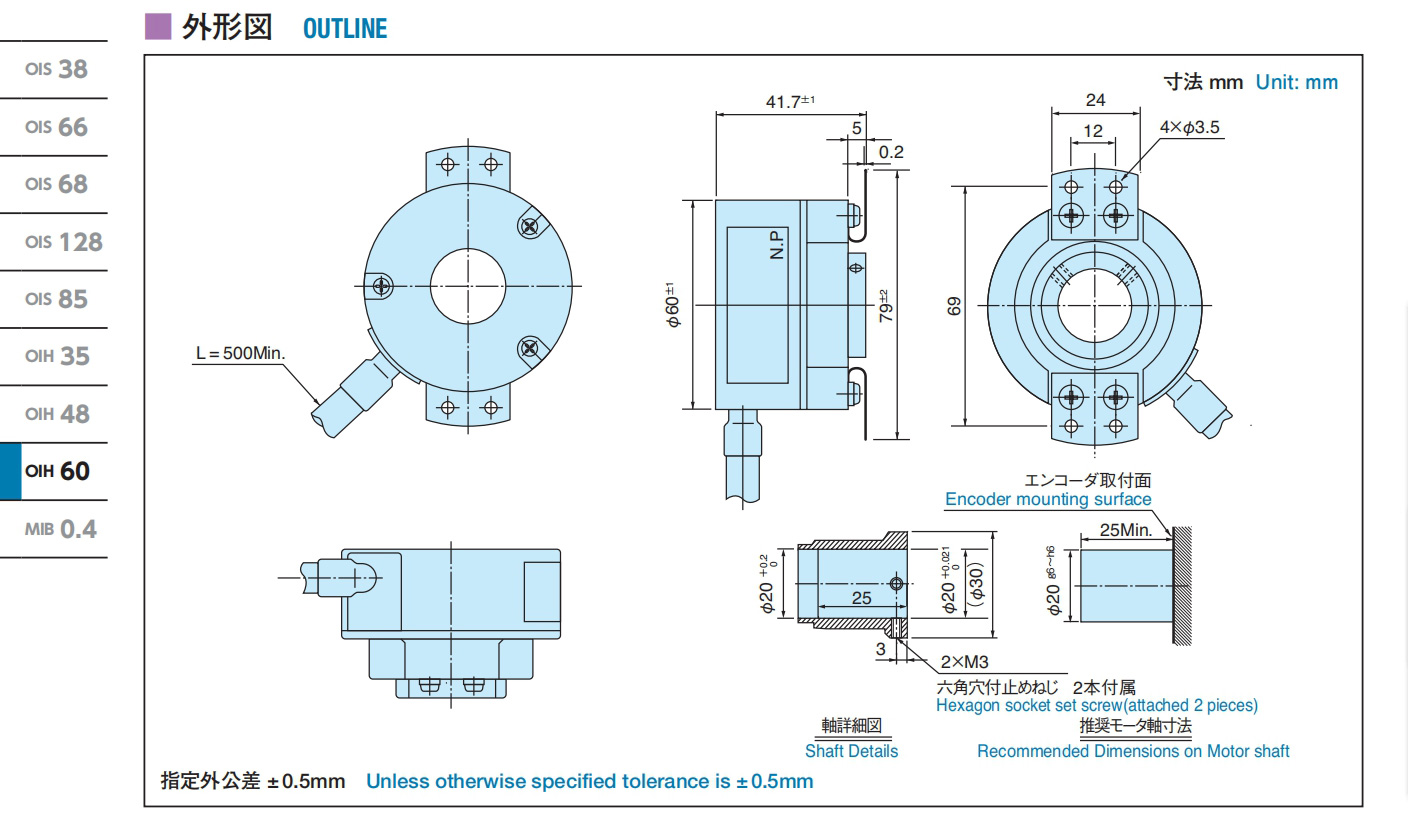

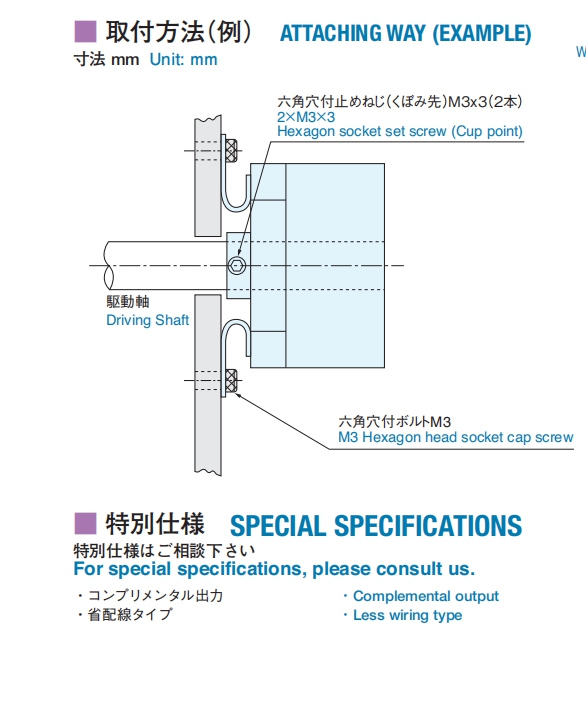

OUTLINE

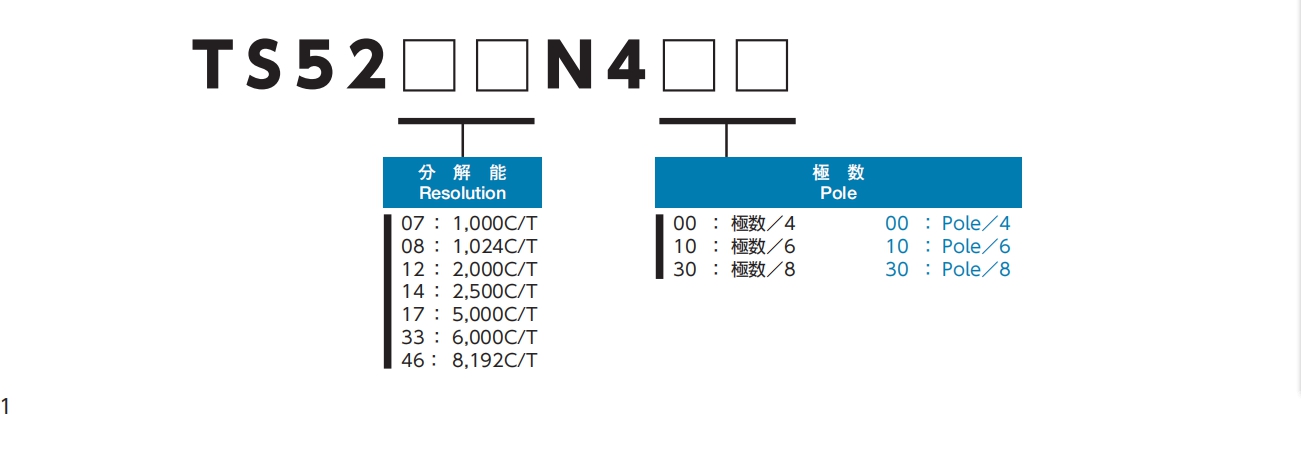

Model No.

  Designate the Model No. when ordering

  ◎ For special cases, please consult us.

Mechanical Spec.

Starting Torque

9.8x10 – 3 N · m Max

（100gf· cm Max）

Moment of Inertia

6.5x10 – 6 kg·m2 Max

（65g ·cm2 Max）

Maximum Allowable Rotation

6,000min – 1（

rpm）

Mounting Tolerance

Radial Play

0.05mm TIR Max

Axial End Play

0.2mm Max

Shaft Inclination

0.1° Max

Operating Temp. Range

–20 ～ +85°C

Storage Temp. Range

–25 ～ +85°C

Protective Structure

IP = 40

Vibration

5 ～ 40Hz. Total amplitude 1.52mm

40 ～ 200Hz, 49m/s2（5G）

3 2H 3way, 2H each

Shock

980m/s2（100G）11msec

 6way, 3times each

Mass

0.5kg Max

SResolution

1,000 ～ 8,192 C/T

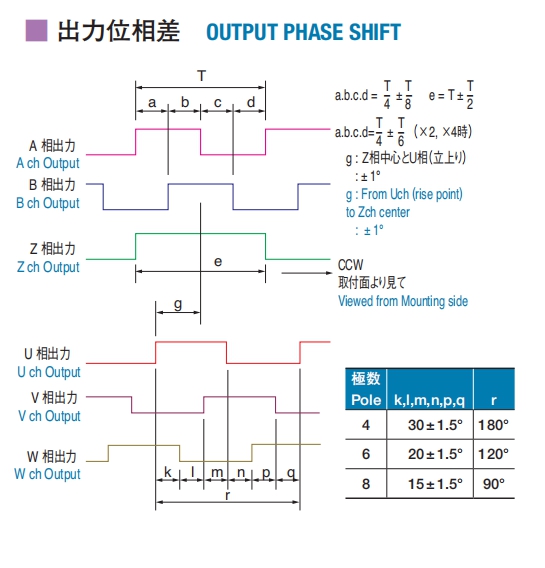

Output Phase

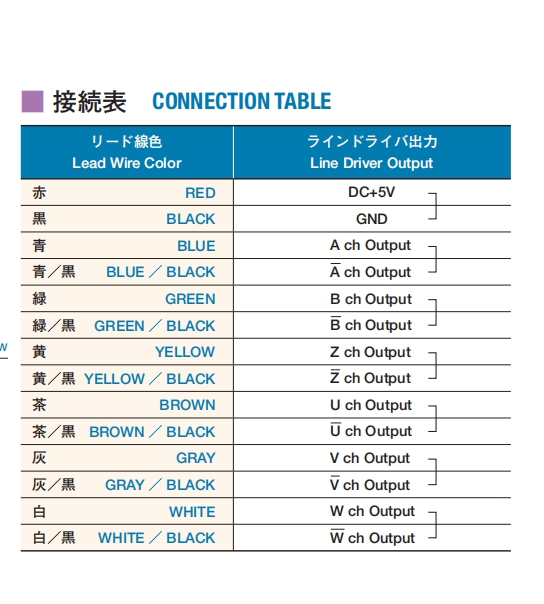

A, B, Z, U, V, W

A, B, Z, U, V, W Phase

Supply Voltage

DC + 5V ± 5%

Consumption Current

200mA Max

      (No load)

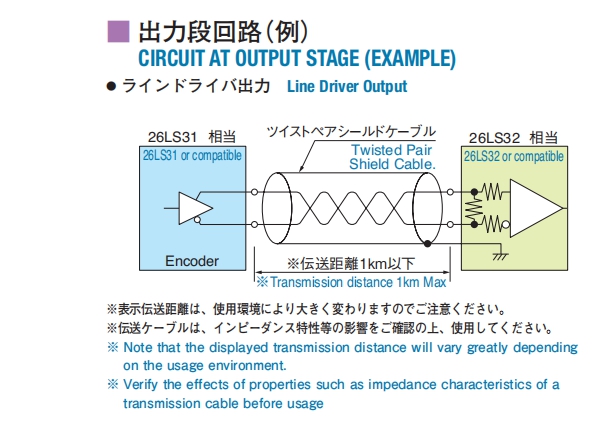

Line Driver

26LS31

26LS31 or compatible

20mA Max

Source Current

20mA Max

Sink Current

Maximum Response Frequency

200kHz

Rise / Fall time

100nsec Max

Brand Origin: Japan

Product Brand: Tamagawa

Brand series: OIH60 series

Product model: TS5214N410

The purpose and characteristics of the Japanese Tamagawa encoder oih35 0th48 0ih60 servo motor encoder:

1. Small size, full through hole, high precision, single installation room, high performance design, strong anti-interference.
2. Suitable for precision working environment, automation industrial control field, etc...
3. It has the characteristics of impact resistance, good vibration resistance, light weight and strong load.
4. Widely used in the field of automatic control, used in elevators, CNC machine tools, robots, woodworking machinery, engineering machinery, textile machinery, chemical fiber, engraving machines, wire drawing machines, hosiery machines, servos, DC motors, computing technology, and measurement of CNC machinery All walks of life, etc...
5. Features of Tamagawa encoder: easy installation, simple operation, stable performance, long service life, etc.!
