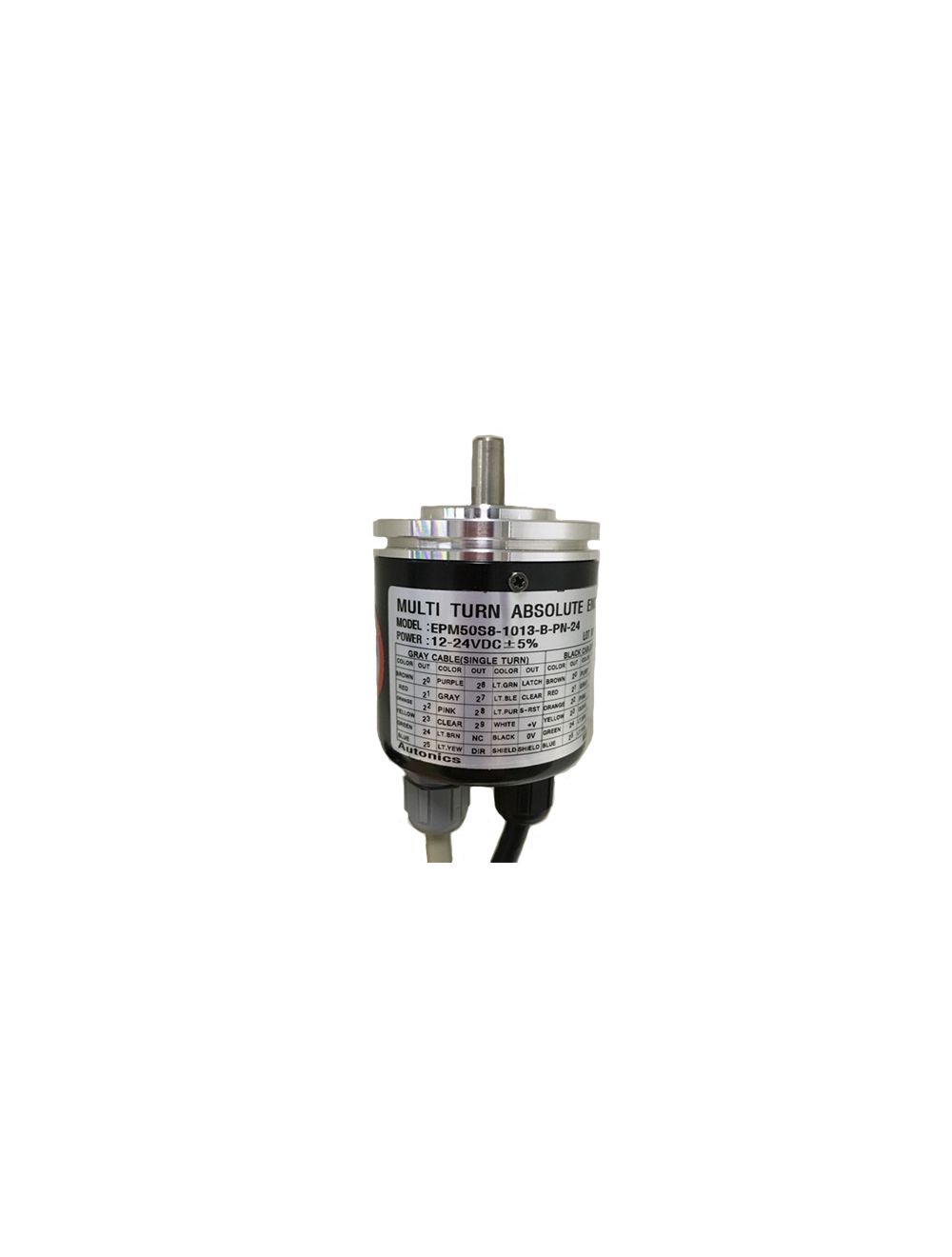

Supply of high-performance, efficiency and reliability Autonics Rotary Encoder EPM50S8-1013-B-PN-24, Autonics Encoder, Encoder, Okplazas, industrial products from okplazas industrial supply, Autonics encoders can satisfy various needs.

Shaft outer diameter: Ø8mm

Maximum response frequency: 50kHz

Maximum allowable speed: 3000rpm

Starting torque: Max. 70gf.cm (max. 0.0069N.m)

Resolution: Single circle: 1024 equal divisions, Multi circle: 8192 resolution

Output code system: binary code

Control output: Parallel NPN open collector

Power supply voltage: 12-24VDC ±5% (ripple P-P: Max.5%)

Connection cable type: Axial wiring lead type

Protection level: IP64

data sheet

Shaft outer diameter Ø8mm

Maximum response frequency 50kHz

Maximum allowable speed 3000rpm

Starting torque Max. 70gf.cm (max. 0.0069N.m)

Resolution: Single turn: 1024 equal divisions, Multi-turn: 8192 resolution

Output code system Binary code

Control output Parallel NPN open collector

Power supply voltage 12-24VDC ±5% (ripple P-P: Max.5%)

Connection cable type Axial wiring lead type

Protection grade IP64

Certification CE

Ambient temperature -10~70℃, storage: -25~85℃

Ambient humidity 35~85%RH, storage: 35~90%RH

Accessories Bracket, Coupling

Weight about 560g (about 475g)

※The multi-turn counting function will be stopped after the power is off. After the power is turned on again, the multi-turn counting will compare the lap data at the time of power off and the current lap data to calculate the current lap based on the number of laps at the time of power failure.

If the rotation angle exceeds ±90° after the power is off, the correct rotation count will not be obtained.

※Overflow alarm (OVF): When the multi-turn count exceeds the count range (0~8191 resolution), the output is ON.

※When the single-turn data reset signal is input, the single-turn data will be initialized to [0].

※When the multi-turn count reset signal is input, the multi-turn count data will be initialized to [0].

※In the case of parallel connection, when selecting the resolution, please ensure that the maximum response speed is lower than or equal to ~maximum allowable speed

[Maximum response speed (rpm)=Maximum response frequency/resolution × 60sec]

※The weight includes the outer packaging, and the net weight of the product is in parentheses.

※Environmental characteristics are non-icing and dew condensation state.
