Airtac standard cylinder SAUF series valve cylinder model size description

Overview of Airtac standard cylinder SAU and SAUF series

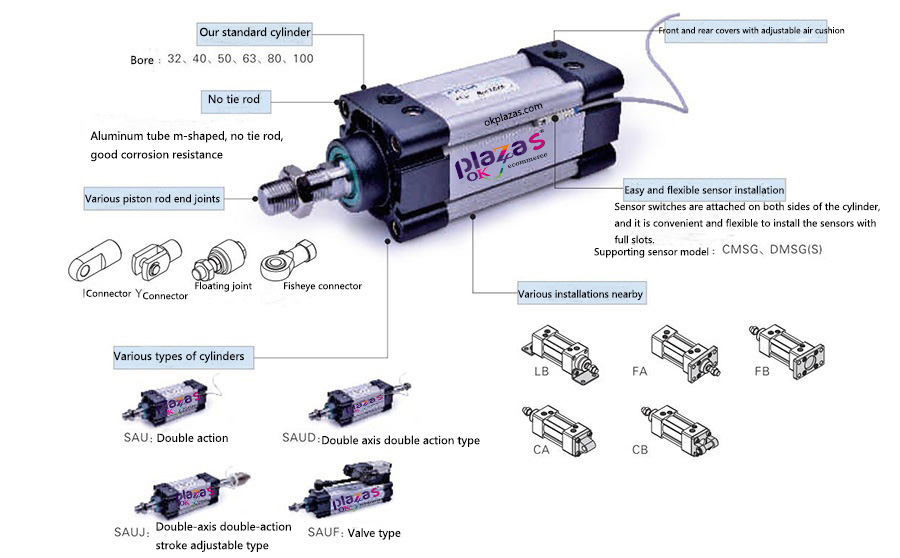

◆The composition diagram of the appearance structure is shown below.

Transmitter|Encoder|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

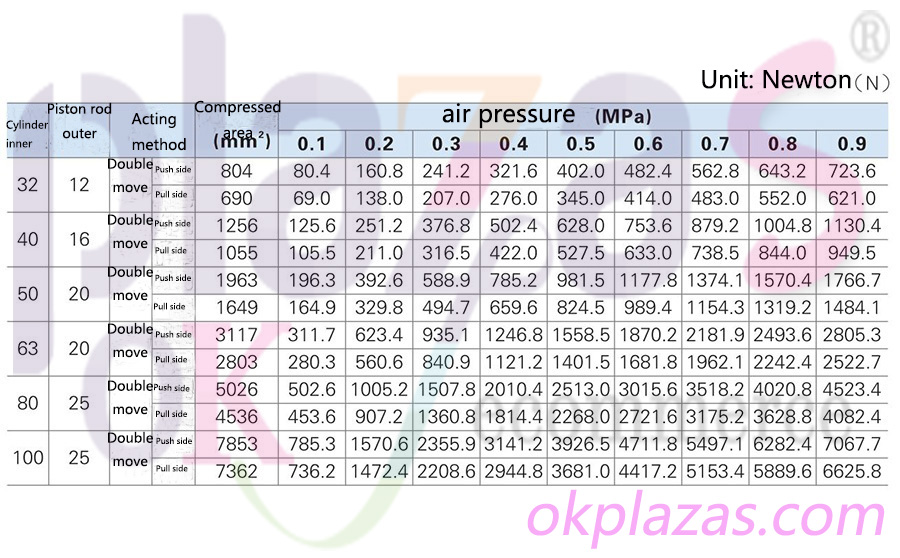

◆The cylinder theoretical processing table is shown below.

Transmitter|Encoder|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.


1. First of all, when the load changes during work, you should choose a cylinder with ample output force.

2. In addition, under high temperature or corrosive conditions, AirTAC standard cylinders with corresponding high temperature resistance or corrosion resistance should be used.

3. When used in places with high humidity and dust, water droplets, welding slag, etc., necessary protective measures should be taken to the cylinder in time.

4. Before the cylinder is connected to the pipeline, it is necessary to clean up the dirt inside the pipeline to prevent the debris from accidentally entering the inside of the equipment.

5. Secondly, the medium used in the cylinder needs to be filtered by a filter element above 40μm.

6. Anti-freezing measures should be taken at the same time in a low temperature environment to prevent the moisture in the system from freezing.

7. AirTAC standard cylinder SAUF series should go through a no-load test run before use, and adjust the slow motion to the minimum state before running, and then gradually relax it to avoid excessive impact and damage the cylinder.

8. The final equipment should avoid side load as much as possible during the working process to maintain the normal operation of the cylinder and prolong the service life.

9. If the cylinder is removed and not used for a long time, pay attention to rust prevention on the surface, and add anti-clogging caps to the intake and exhaust ports.

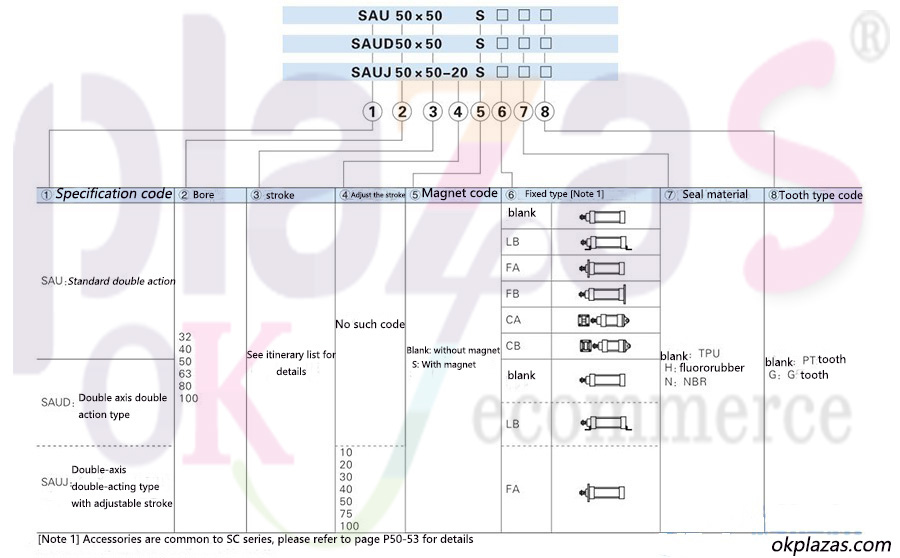

Airtac standard cylinder SAU series model description

Transmitter|Encoder|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

Airtac standard cylinder SAU series product features

◆This series is a standard cylinder under Airtac brand;

◆The piston seal adopts a special-shaped two-way sealing structure with compact overall size and oil storage function;

◆It is aluminum tube m-shaped without a tie rod, and has good anti-corrosion performance, and there is a sensor installation groove on the outside for additional installation needs;

◆Compared with ISO15552 standard cylinder, the length of Airtac cylinder of the same bore SAU series is smaller;

◆Equipment slow adjustment is stable and reliable;

◆This series of cylinder installation accessories are common to SC series cylinders;

◆Choosing high-temperature-resistant sealing materials can ensure that the equipment can still work normally at 150°C.

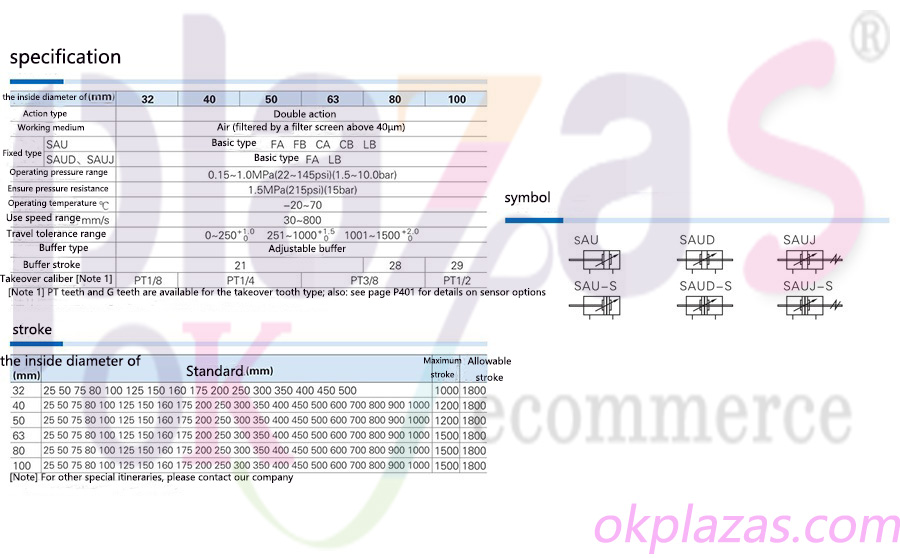

Airtac standard cylinder SAU series technical parameters

Transmitter|Encoder|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

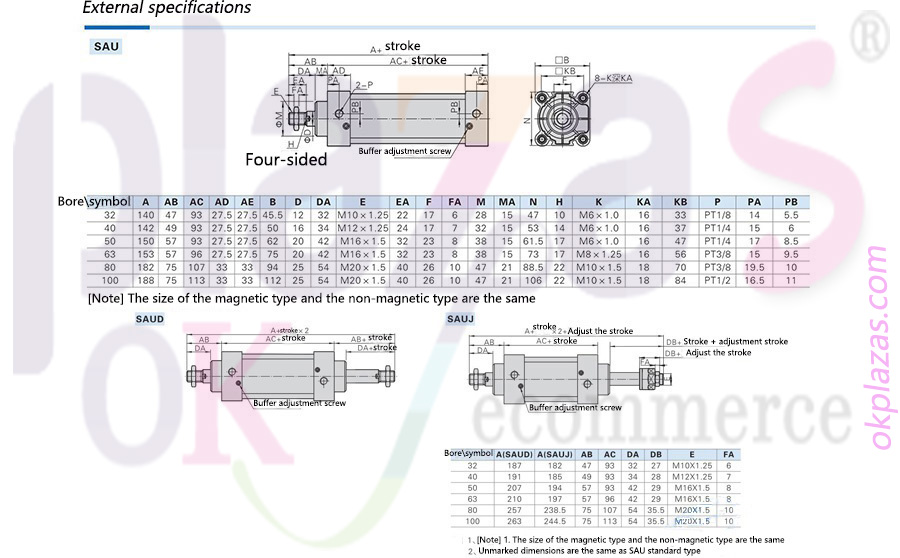

Airtac standard cylinder SAU series specifications

Transmitter|Encoder|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

Airtac standard cylinder SAUF series overview (with valve type)

The cylinders of this series are derived from the standard cylinder and valve combination of Airtac brand, and can be used with 4M210 and 4M310. Among them, the cylinder size of 32, 40, 50 can be matched with 4M210 valve, and the cylinder size of 63, 80, 100 can be matched with 4M310 valve.

SAUF series standard cylinders can be controlled one-to-one, so there is no need to install additional control valves. In turn, it saves installation time and installation space, and is suitable for distributed use in large systems. Airtac standard cylinder SAUF has a variety of installation accessories to choose from, both installation and maintenance are very simple.

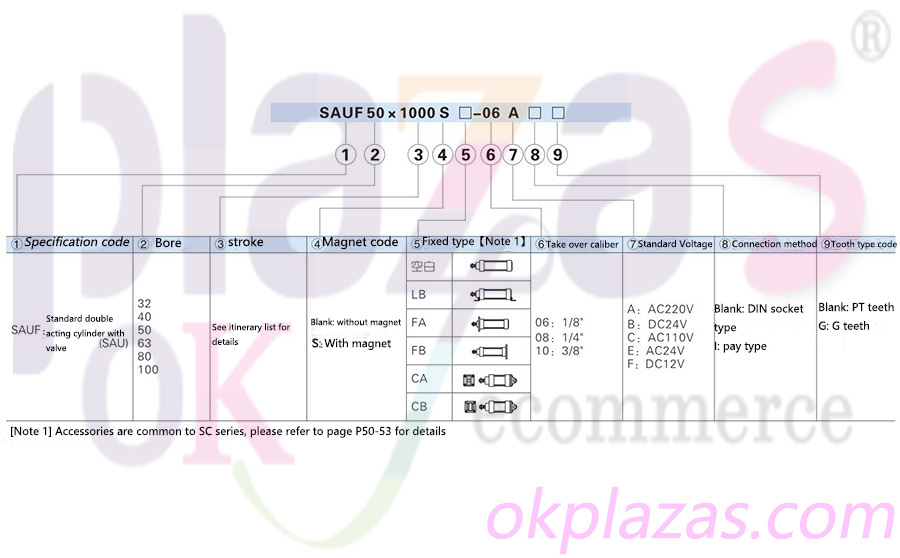

Airtac standard cylinder SAUF series model description

Transmitter|Encoder|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

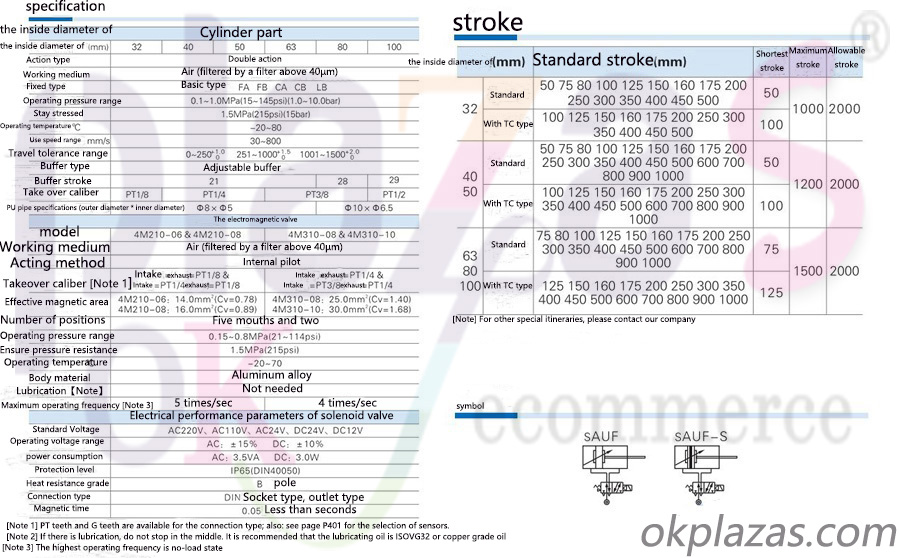

Airtac standard cylinder SAUF series technical parameters

Transmitter|Encoder|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

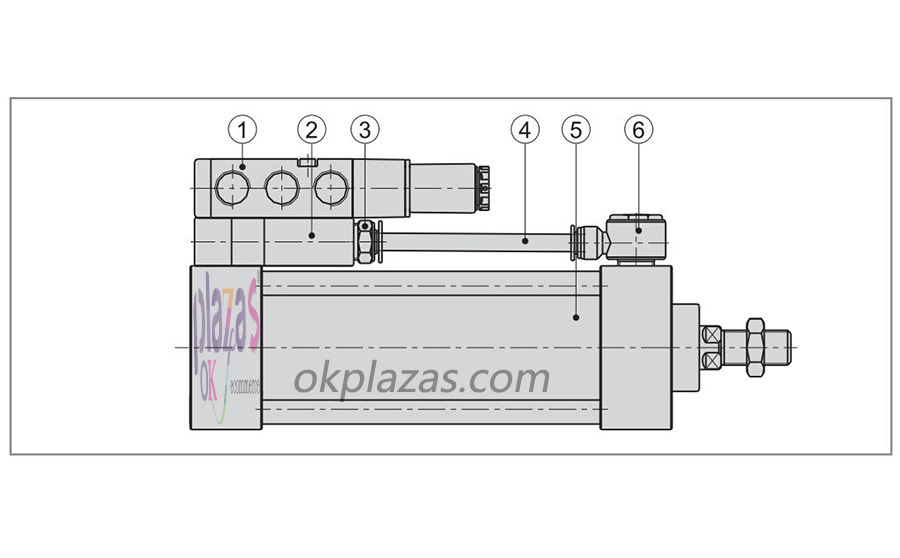

Airtac standard cylinder SAUF series structure composition

Transmitter|Encoder|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

Note:

1. 4M series solenoid valve;

2. Connection block;

3. APC connector;

4. PU hose;

5. SAU series standard cylinder;

6. APH connector.

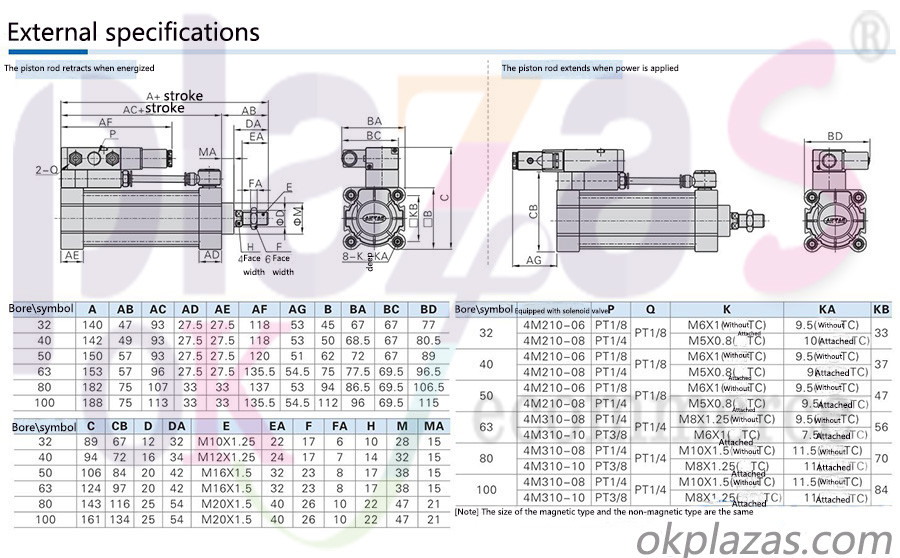

Airtac standard cylinder SAUF series specifications and dimensions

Transmitter|Encoder|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

Airtac standard cylinder SAUF series precautions

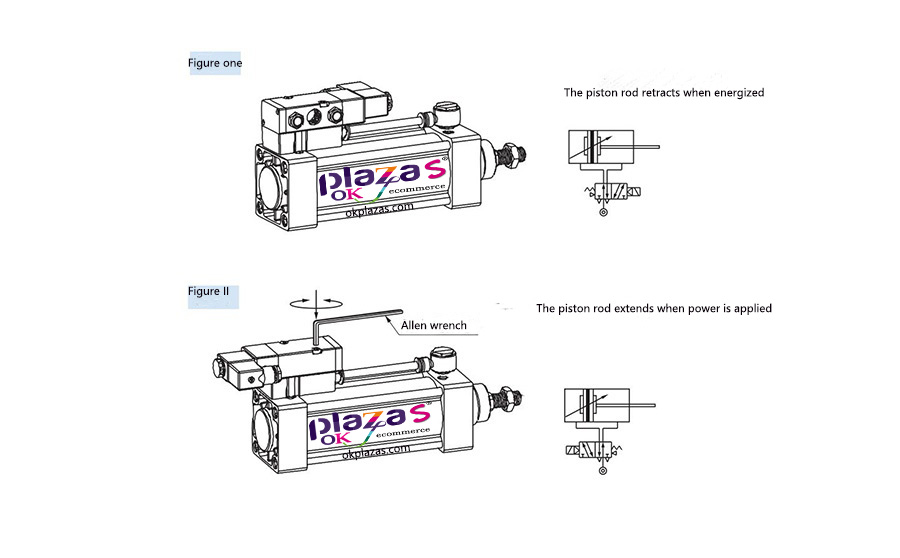

First of all, according to the actual conditions of use, two working states can be selected: the piston rod retracts when energized and the piston rod extends when energized. Secondly, the default factory state of the standard cylinder is the retracted state of the piston rod when energized, so you only need to remove the solenoid valve and install it, and then you can turn the Airtac standard cylinder into the extended state of the piston rod when energized. , The specific operation method is shown in the figure below.

Transmitter|Encoder|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

Note: When disassembling the solenoid valve, pay special attention to whether the seal O with the connecting block is in the specified position.

The above is the model and size description of Airtac standard cylinder SAUF series valve cylinder. I hope to help everyone. You can log in to the okplazas.com motor mall to view the relevant product information of AirTAC, welcome to email: [email protected] for consultation, and you can also contact WeChat customer service online at +86-13689242098 for product consultation!
