Basic knowledge and model purchase of SMD adjustable resistors

There are many specifications and models of adjustable resistors. In general, the resistance error of SMD adjustable resistors is divided into various precisions such as ± 20%, ± 10%, ± 5%, ± 1%, etc. The most used is ± 5% and ±1% accuracy, ±5% accuracy. The 103 printed on the patch adjustable resistor, the first 2 digits 10 represent effective digits, the third digit 3 represents the magnification, which is 10 to the 3rd power, so the resistance value of 103 should be 1000 ohms, which is 10k, the accuracy Is 5%. 1502 printed on the patch adjustable resistor: the first three digits 150 represent effective digits, the fourth digit 2 represents the magnification, which is 10 to the 2nd power, so the resistance value of the 1502 patch adjustable resistor should be 15000 ohms, That is 15k, and its accuracy is 1%. There is a type with the letter R. This kind of resistance means that its resistance value has a decimal. The position of the letter R is the position of the decimal point, such as R047, which means 0.047 ohm.

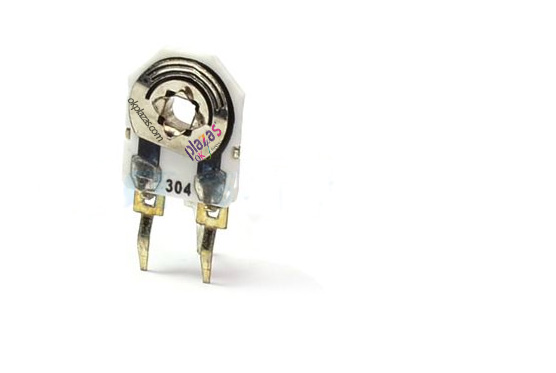

(1)SMD adjustable resistor RM085C-H2_square hole:

Encoder|Transmitter|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

SMD adjustable resistor RM085C-H2 square hole_reference drawing:

Encoder|Transmitter|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

SMD adjustable resistor RM085C-H2 square hole_Introduction:

　　Adjustable resistor RM085C-H2 is made of iron-shell carbon film material with a diameter of 8mm. It can also be called a vertical adjustable resistor with a resistance value of 100 ohms to 2 megohms. The adjustment hole has two types: a font and a square. Its RM085C-H2 adjustable resistor is widely used in industries such as instrumentation, household appliances, communication products and electronic security.

　　 SMD adjustable resistor RM085C-H2 square hole_Technical parameters:

　　 Resistance range (Ohms): 100~2M

　　 Resistance deviation: R<500KΩ ±20%

　　R≥500KΩ ±30%

　　 Resistance change characteristics: B

　　Higher voltage: AC50V

　　 Rated power: 0.1W

　　 Residual resistance: R≤ 1KΩ: 30Ω max R>1KΩ: 3%max

　　 Rotation life: R≤15% max. for 100cycles

　　 Mechanical characteristics:

　　 Rotation angle: 250°±20°

　　 Rotation torque: 80~350gf.cm

　　Stop intensity: 0.5Kgf.cm Max

(2)SMD adjustable resistor RM065C-H2

Encoder|Transmitter|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

SMD adjustable resistor RM065C-H2 reference drawing:

Encoder|Transmitter|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

SMD adjustable resistor RM065C-H2_Product introduction:

　　The adjustable resistor RM065C-H2 is made of iron-shell carbon film material, with a diameter of 6mm. It can also be called ∮6 vertical adjustable resistor, 6mm patch adjustable resistor, etc. The adjustment direction is top adjustment, and the resistance adjustment range: 100 ohms-2 megohms. RM065C-H2 is widely used in household appliances, instrumentation, communication products and electronic security industries.

　　 SMD adjustable resistor RM065C-H2_Technical parameters:

　　 performance:

　　 Resistance range (Ohms): 100~2M

　　 Resistance deviation: R<500KΩ: ±20%,

　　R≥500Ω:±30%

　　 Resistance change characteristics: B

　　Higher voltage: AC50V

　　 Rated power: 0.1W

　　 Residual resistance: R≤ 1KΩ: 30Ω MAX,

　　R>1KΩ:3%MAX

　　 Rotational life: R≤15% max. for 100cycles

　　 Mechanical characteristics:

　　 Rotation angle: 220°±20°

　　 Rotation torque: 80~150gf.cm

　　 Stop gear intensity: 0.5Kgf.cm MAX

(3)SMD adjustable resistor RM085G-H5

Encoder|Transmitter|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

SMD adjustable resistor RM085G-H5_Reference drawing:

Encoder|Transmitter|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

SMD adjustable resistor RM085G-H5_Product introduction:

　　RM085G-H5 is a ceramic plug-in adjustable resistor, the adjustment direction is side adjustment, it can also be called a vertical plug-in adjustable resistor on the market. Power 0.5W. The error is 20% and 10% (need to be customized). RM085G-H5 has two pitches: 5mm*5mm and 5mm*2.5mm. Packed in a bag of 500. It is widely used in household appliances, instrumentation, communication products and electronic security industries.

　　 SMD adjustable resistor RM085G-H5_Technical parameters:

　　 Potentiometer_Performance:

　　 Resistance range (Ohms): 100~4.7M

　　 Resistance deviation: ±20%

　　 Resistance change characteristics: B

　　Higher voltage: AC30V

　　 Rated power: 0.5W

　　 Rotating noise: 100mV

　　 Residual resistance value: R≤ 1kΩ, r01, r03≤10Ω

　　R>1kΩ, r01, r03<1%R

　　Environmental characteristics:

　　Working temperature environment: -40℃~125℃

　　Temperature Coefficient: ±250ppm

　　Temperature characteristics: ±3%, placed at 70℃ for 5 hours

　　 Mechanical characteristics:

　　 Rotation angle: 240°±10°

　　 Rotation torque: 5~35mN•m

　　 Stop gear intensity: 50 mN•m

　　Mechanical life: 30 turns of resistance change ±10%

(4)SMD adjustable resistor RM065G-V3

Encoder|Transmitter|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

SMD adjustable resistor RM065G-V3_Reference drawing:

Encoder|Transmitter|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

SMD adjustable resistor RM065G-V3 product introduction:

　　RM065G-V3 is a ceramic plug-in adjustable resistor, power 0.25W. The error is 20% and 10% (need to be customized). RM065G-V3 is a three-legged horizontal top adjustment without a cap, and the foot pitch is 5*5. Packed in a bag of 500.

　　 SMD adjustable resistor RM065G-V3_Technical parameters:

　　 SMD adjustable resistor RM065G-V3_ performance:

　　 Resistance range (Ohms): 100~500K

　　 Resistance deviation: ±20%

　　 Resistance change characteristics: B

　　 Higher operating voltage: 30V Max

　　 Rated power: 0.25W

　　 Rotating noise: 100mV

　　 Residual resistance: R≤1kΩ, r01,r03≤10Ω R>1kΩ, r01,r03<1%R

　　 SMD adjustable resistor RM065G-V3_mechanical features:

　　 Rotation angle: 240°±10°

　　 Rotation torque: 3~30mN•m

　　Stop intensity: 50mN.m

　　 In order to avoid some heat damage during the installation and welding of the SMD adjustable resistor, more attention should be paid to the time of its welding resistance. Usually, the welding time is best kept within 3S to complete the operation. Otherwise, if the soldering is not stable after the time has passed, you need to wait for the resistance of the terminals to dissipate before you can perform the re-soldering of the second operation. Due to the small size of the SMD resistors, the storage of the resistors generally cannot directly leave the resistors in the air for a long time, otherwise it will easily cause oxidation of the resistors, so that the post-positioning reduces its solderability. On the other hand, SMD adjustable resistors should also pay attention to the storage environment, and should not be placed in places with excessive humidity to avoid causing the resistor to become damp and fail.
