Connection method of rotary encoder and counter

To connect with the counter, take H7CX (made by OMRON) as an example. H7CX input signal is divided into non-voltage input and voltage input.

No voltage input

When inputting in no-voltage mode, only NPN output signal is accepted.

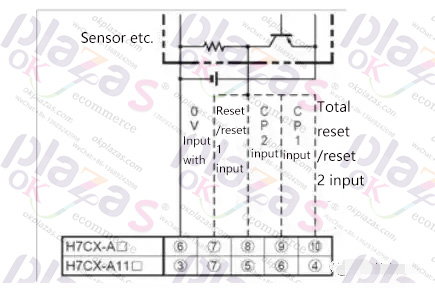

The wiring method of NPN open collector output is as follows:

Encoder|Transmitter|Encoder|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

The specific wiring method is as follows: the brown wire is connected to the positive pole of the power supply, the blue wire is connected to the negative pole of the power supply, and then a wire is drawn from the negative end of the power supply to terminal 6; the black and white wires are connected to terminals 8 and 9, if automatic reset is required, orange Connect the line to the No. 7 terminal.

The wiring method of NPN voltage output is as follows:

Encoder|Transmitter|Encoder|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

The wiring method is the same as the NPN open collector output method.

Voltage input

The wiring method of NPN open collector output is shown in the figure below:

Encoder|Transmitter|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

The specific wiring method is as follows: the brown wire is connected to the positive pole of the power supply, the blue wire is connected to the negative pole of the power supply, and then a wire is drawn from the negative end of the power supply to terminal 6; the black and white wires are connected to terminals 8 and 9, if automatic reset is required, orange Connect the line to the No. 7 terminal.

The wiring method of PNP open collector output is shown in the figure below:

Encoder|Transmitter|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

The specific wiring method is as follows: the brown wire is connected to the positive pole of the power supply, the blue wire is connected to the negative pole of the power supply, and then a wire is drawn from the negative end of the power supply to terminal 6; the black and white wires are connected to terminals 8 and 9, if automatic reset is required, orange Connect the line to the No. 7 terminal.
