Encoder color comparison wiring diagram

The encoder is a rotary sensor that converts the rotational displacement into a series of digital pulse signals. These pulses can be used to control the angular displacement. If the encoder is combined with a gear pin or screw screw for measurement, linear displacement can also be used. The electrical signal generated by the encoder is processed by the programmable logic controller plc, control system, etc. Transmit the motor feedback signal to the frequency converter. Correct installation and wiring are particularly important.

Correct wiring of encoder

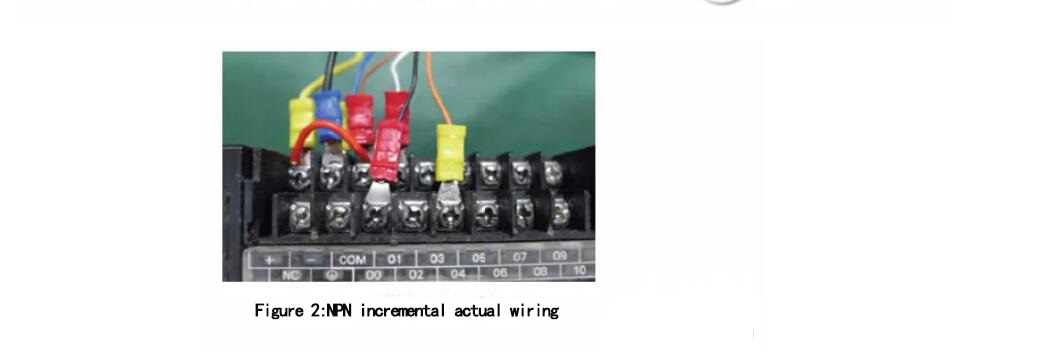

(1)Correct wiring is essential. Figure 1 shows the wiring principle of NPN output incremental E6B2-CWZ6C. Figure 2 shows the actual wiring of NPN output incremental E6B2-CWZ6C. The brown wire is connected to the positive pole of the power supply and the blue wire is connected The negative of the power supply, the black wire is connected to the input 0.00, the white wire is connected to the input 0.01, the orange wire is connected to the input 0.04, and the COM of the PLC is connected to the positive power supply.

Encoder|Transmitter|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel. Encoder|Transmitter|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

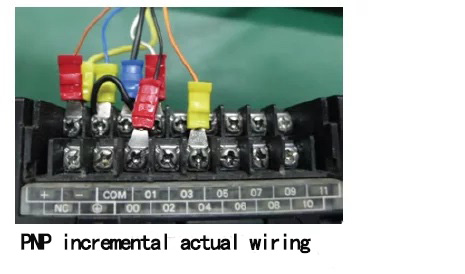

(2)The figure below is the actual wiring diagram of the PNP output incremental E6B2-CWZ6B. The brown wire is connected to the positive pole of the power supply, the blue wire is connected to the negative pole of the power supply, the black wire is connected to the input 0.00, the white wire is connected to the input 0.01, and the orange wire is connected to the input 0.04. The COM of the PLC is connected to the negative pole of the power supply.

Encoder|Transmitter|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

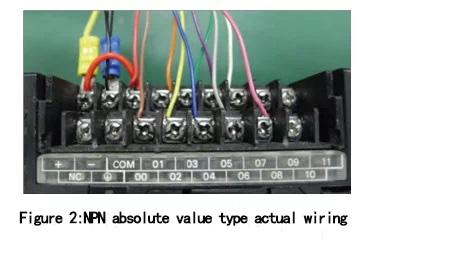

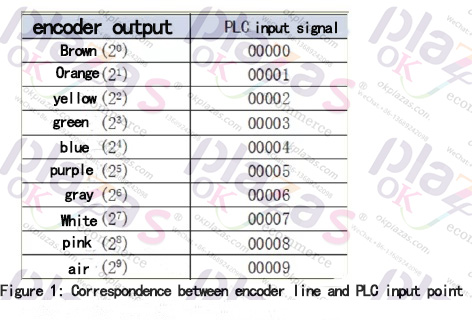

3)Figure 1 is the corresponding diagram of the absolute value encoder line and the PLC input point, Figure 2 is the actual wiring diagram of the NPN output absolute value E6C3-AG5C, the red wire is connected to the positive pole of the power supply, and the black wire is connected to the negative pole of the power supply, brown Wire to input 0.00, orange wire to input 0.01, yellow wire to input 0.02, green wire to input 0.03, blue wire to input 0.04, purple wire to input 0.05, gray wire to input 0.06, white wire to input 0.07, pink wire Connect to the input 0.08, and connect the COM of the PLC to the positive pole of the power supply.

Encoder|Transmitter|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel. Encoder|Transmitter|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

（4）The figure below is the actual wiring diagram of PNP output absolute value type E6C3-AG5B, the red wire is connected to the positive pole of the power supply, the black wire is connected to the negative pole of the power supply, the brown wire is connected to the input 0.00, the orange wire is connected to the input 0.01, the yellow wire is connected to the input 0.02, green The wire is connected to input 0.03, the blue wire is connected to input 0.04, the purple wire is connected to input 0.05, the gray wire is connected to input 0.06, the white wire is connected to input 0.07, the pink wire is connected to input 0.08, and the COM of the PLC is connected to the negative pole of the power supply.

Encoder|Transmitter|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

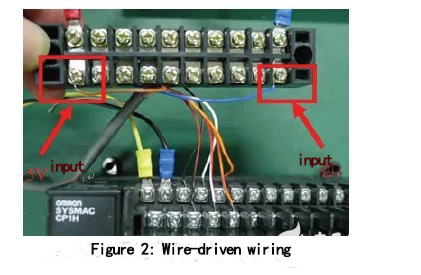

（5)Figure 1 is the wiring principle of the line drive encoder, Figure 2 is the actual wiring diagram, the black wire is connected to A0+, the black and red border wire A0-, the white wire is connected to B0+, the white and red border wire is connected to B0-, and the orange wire is connected to Z0+. Connect the orange-red fringe wire to Z0-, the brown wire to the power supply +5V, and the blue wire to the power supply 0V. Do not make wiring errors.

Encoder|Transmitter|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel. Encoder|Transmitter|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

Encoder wiring diagram

1.Wiring diagram of HEIDENHAIN ERN1387 sine-cosine incremental encoder and SIEI inverter:

Encoder|Transmitter|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

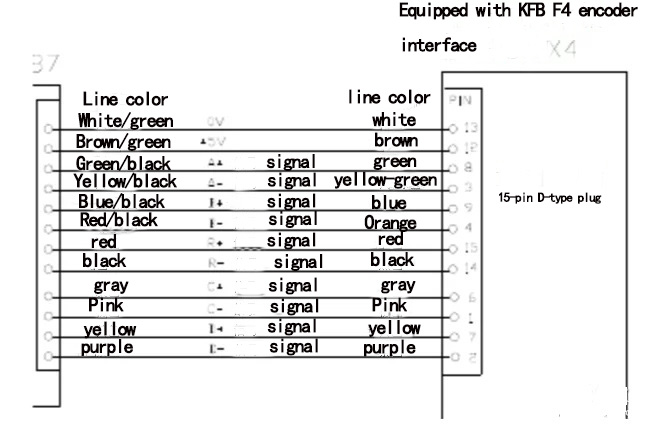

2.Wiring diagram of HEIDENHAIN ERN1387 sine-cosine incremental encoder and Kobe F4 inverter:

Encoder|Transmitter|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

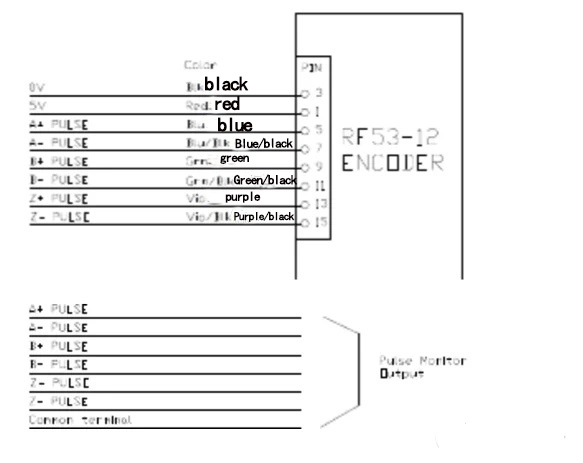

3.Wiring diagram of Danaher RF53 incremental square wave encoder and Yaskawa and Kumar inverters:

Encoder|Transmitter|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

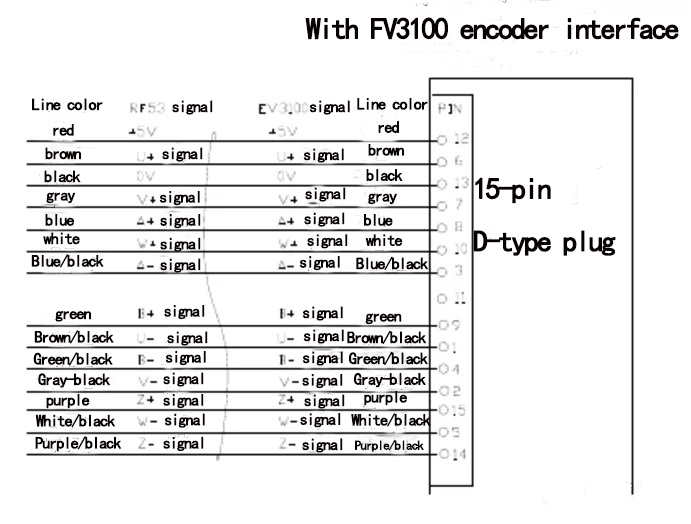

4.Wiring diagram of Danaher RF53 incremental square wave encoder and Emerson inverter EV3100:

Encoder|Transmitter|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

Servo motor encoder function wire color comparison table

Encoder|Transmitter|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

1.Fiss Motor Encoder PCB board wiring

Encoder|Transmitter|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

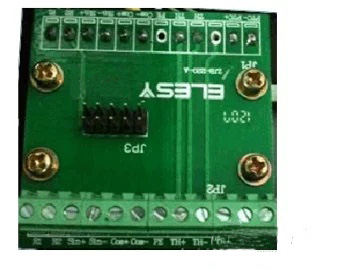

2.PCB board wiring of Yilaisi motor encoder
