In-depth study of PROFIdrive drive control protocol (2)

In the previous article, we introduced PROFIdrive standard messages 1, 2 and 3. Today in this article we will introduce standard messages 4 and 20, and introduce the control word STW1 and status word ZSW1.

Encoder|Transmitter|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

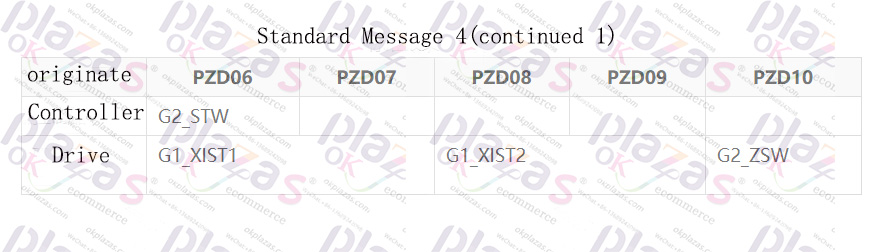

1. Standard message 4 Standard message 4 is used for speed control and has 2 encoder position feedbacks. It is based on standard message 3, adding the control word (G2_STW), status word (G2_ZSW), and actual position 1 of encoder 2 (G2_XIST1) and actual position 2 (G2_XIST2), its message length is 14 PZD, as shown in the following table:

Encoder|Transmitter|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel. Encoder|Transmitter|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel. Encoder|Transmitter|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

2. Standard message 20

Standard message 20 is used for speed control. It uses 16-bit speed setting value (NSOLL_A) and feedback value (NACT_A), and feedbacks the actual motor current (IAIST_GLATT) and actual torque (MIST_GLATT), actual active power (PIST_GLATT) and fault (MELD_NAMUR), as shown in the following table:

Encoder|Transmitter|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel. Encoder|Transmitter|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

3. Control word 1 (STW1)

Control word 1 (STW1) is used to control the inverter to run, stop, run at a specified speed, and so on.

STW1 includes 16 bits, the definition of each bit is shown in the following table:

Definition of Control Word 1 (STW1)

Encoder|Transmitter|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

The specific description of each bit is as follows:

Bit 0 (OFF1): When the value of this bit changes from 0 to 1, the inverter enters the "ready for operation" state;

When the value of this bit changes to 0, the motor runs according to the ramp time of the ramp-function generator (p1121)

Braking, the inverter turns off the motor after reaching a static state;

Bit 1 (OFF2): When the value of this bit becomes 0, the motor is immediately shut down and coasts to stop; this bit

When the value is 1, it means that the power can be connected;

Bit 2 (OFF3): When the value of this bit becomes 0, the motor follows the OFF3 ramp time (p1135)

Brake until it reaches a static state; when the value of this bit is 1, the inverter turns on the motor power;

Bit 3 (Enable): When the value of this bit is 0, the motor operation is prohibited (pulse blockade); when the value of this bit is 1, the motor operation is enabled;

Bit 4 (EnableRamp): 0=block the ramp function generator, the inverter sets the output of the ramp function generator to 0; 1=do not block the ramp function generator;

Bit 5 (FreezeRamp): 0=Stop the ramp function generator, the inverter keeps the output of the ramp function generator at the current value; 1=Enable the ramp function generator, and the output of the ramp function generator tracks the set value;

Bit 6 (EnableSetPoint): 0=block the setpoint, the motor brakes according to the ramp-function generator time (p1121); 1=enable the setpoint, the motor accelerates to the set speed value according to the ramp-up time (p1120);

Bit 7 (Reset): 0/1 rising edge resets the fault;

8th/9th: reserved;

Bit 10 (ControledByPLC): 0=not controlled by PLC, the inverter ignores the process data from the fieldbus; 1=controlled by the PLC, the inverter will use data from the fieldbus;

The 11th bit (Invert): 1=invert the internal setting value of the inverter;

No. 12: reserved;

13th place: 1=The electric potentiometer is raised, increase the set value saved in the electric potentiometer; 0=no change;

The 14th place: 1 = lower the electric potentiometer, reduce the set value saved in the electric potentiometer; 0 = no change;

No. 15: Reserved. In the standard message 20, it is the CDS bit 0 (CDS=command Data set) to switch between different command data;

4. Status word 1 (ZSW1)

Status word 1 (ZSW1) is used to feedback the status of the inverter, such as whether it is ready, whether it has been running, whether there is a fault/warning, etc. ZSW1 includes 16 bits, the definition of each bit is shown in the following table:

Definition of status word 1 (ZSW1)

Encoder|Transmitter|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

The specific description of each bit is as follows:

Bit 0 (PowerReady): 1=Ready to switch on, the power has been switched on, the electronic components have been initialized, and the pulse is blocked;

The first digit (ReadyForRunning): 1=The motor has been switched on and there is no fault at present (receive the operation enable STW1.3) command, the inverter will switch on the motor;

No. 2 (Running): The motor speed follows the set value;

No. 3 (Fault): 1=fault occurred;

Bit 4 (OFF2_NOT_ACTIVATD): 1=OFF2 is not activated;

Bit 5 (OFF3_NOT_ACTIVATD): 1=OFF3 is not activated

Bit 6 (Inhibit): 1=On prohibition is valid, only when OFF1 command is given and given again

The motor can be switched on after the ON command;

No. 7 (Warning): 1=Warning;

No. 8 (Tolerance): 1=The speed difference is within the tolerance range of 2020/12/28;

Bit 9 (Request): 1=Control has been requested, and the automation system is requested to control the inverter;

The 10th bit (OverMaxSpeed): 1=The speed is greater than or equal to the maximum speed;

Bit 11 (Torque Limit): 1= reach the torque limit (this bit of message 20 1= reach the

Current limit or torque limit);

12th place (Brake): 1=Brake is open;

Bit 13 (OverHeating): 0="Motor overheating" alarm;

No. 14 (Direction): Motor steering,

1=forward rotation (internal actual value of the inverter>0);

0=Reverse (internal actual value of the inverter<0);

Bit 15 (OverLoad): 0="Inverter thermal overload" alarm (message 20: 1=display CDS);

Well, about PROFIdrive's message 4, message 20, control word 1 (STW1) and status word

(ZSW1) Let's introduce here first, and then we will give an example of PROFIdrive communication between PLC and inverter.
