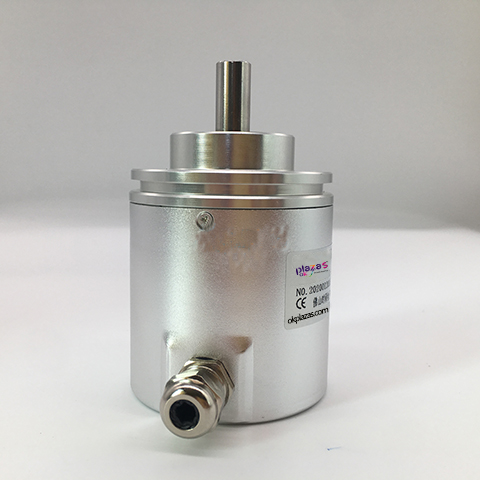

Multi-turn absolute encoder

Absolute Encoder / Absolute Encoder

　　Absolute encoders are divided into single-turn absolute and multi-turn absolute. The code channel is designed using the principles of Gray code, matrix code, vernier code, pseudo-random code, etc. When the shaft rotates, there is a code output corresponding to the position. From the change of the code size, the positive and negative direction and the position of the displacement can be judged, without the need to judge the circuit. It has an absolute zero code. When the power is cut off or shut down, the code of the power cut or shut down position can still be read out and the zero code can be accurately found when the machine is turned on and re-measured.

Multi-turn absolute encoder

The single-turn absolute encoder measures each engraved line of the photoelectric code disc during rotation to obtain a unique code. When the rotation exceeds 360 degrees, the code returns to the origin. Such a code can only be used for measurement within 360 degrees of the rotation range, and is called a single-turn absolute encoder. If you want to measure rotation beyond 360 degrees, you must use a multi-turn absolute encoder.

okplazas.com is a high-tech enterprise integrating R&D, production and sales of industrial encoders and high-precision couplings. The main products of the company are encoder and coupling series. There are five series of encoders: absolute series, economic series, industrial universal series, precision enhanced series, magnetoelectric series; couplings mainly include plum-shaped couplings, diaphragm couplings, and expansion sets Shafts, universal couplings, cross slide couplings, etc.

The company's products strictly implement ISO9001 quality management system standards, fully implement ERP enterprise resource data information management, and have passed CE certification and ROHS certification. Strength casts brand, professional achievement quality. "Time precipitation, fruitful results" Shishuo Technology always adheres to the business philosophy of "accompaniment, learning, innovation, and service", market-oriented, paying attention to customer needs, through technological innovation, to improve product quality and exceed customer expectations, and provide customers with wholeheartedly First-class products and services.

parameter:

　　Multi-turn resolution, up to 25 bits: single-turn 13 bits (8192), 12 bits (4096), zero preset, positive and negative counting

　　Multiple symbologies are available (binary, Gray code, Gray residual code, BCD code, etc.) 　　 Zero preset, direction selection, latch function
