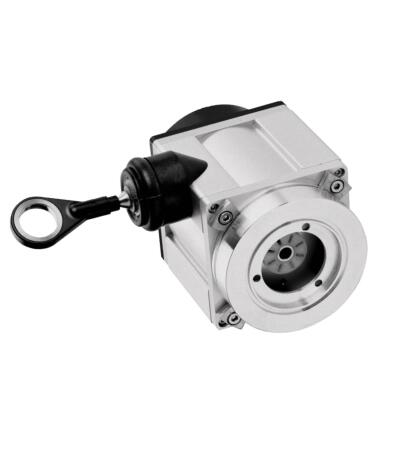

Precautions for the installation and use of the encoder

Precautions for the installation and use of the encoder

Encoder|Transmitter|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

(1) Solid shafts • The flexible soft connection should be adopted between the encoder shaft and the output shaft of the user end to avoid the damage of the encoder shaft system and the code disc due to the serial movement and beating of the user shaft. • When installing, pay attention to the allowable shaft load and not exceed the limit load. • It should be ensured that the difference between the encoder shaft and the user's output shaft is less than 0.20mm, and the deflection angle to the axis is less than 1.5°. •It is strictly forbidden to knock and hit during installation to avoid damage to the shaft system and code disc.

   (2) Hollow shaft • To avoid rigid contact with the encoder, a leaf spring should be used. • Please pay attention to the allowable shaft load during installation. The encoder should be gently pushed into the quilt shaft, and tapping with a cone is strictly prohibited to avoid damaging the shaft and code disc. •The installation shaft must meet the following requirements: axial runout <0.5mm radial runout <0.1mm end face runout <0.1mm • When used for a long time, please check whether the leaf spring is loose on the encoder; whether the screw fixing the encoder is loose.
