Siemens Air Circuit Breaker 3WL Operation Manual Sample

Overview of Siemens Air Circuit Breaker 3WL

In order to protect Siemens circuit breakers and devices and prevent unauthorized operations by maintenance and operators, the device is equipped with a complete interlocking device and can be easily modified. More safety features include the following:

●According to needs, the lower or upper incoming line can be adopted;

●Circuit breaker interlock;

●As a standard configuration, withdrawable circuit breakers can be locked to prevent movement;

●High protection level, with IP55 door sealing cover;

●Standard equipped with mechanical closing interlock device after overload or short circuit trip;

●The air circuit breaker is equipped with auxiliary circuit wiring terminals that meet the required number.

Transmitter|Encoder|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

Siemens air circuit breaker 3WL is equipped with the following functions as standard:

●Mechanical closing and opening buttons;

●Manual energy storage operating mechanism with mechanical closing function;

●Contact position indicator;

●Ready to close indicator;

●Spring energy storage indicator;

●Auxiliary contact 4NO+4NC;

●The horizontal rear main circuit terminal blocks are used for fixed and withdrawable circuit breakers, and the current is up to 5000A, while the vertical rear main circuit terminal blocks are used for 6300A equipment and 4000A frame II;

●For a 4-pole air circuit breaker with a fourth pole (N) on the left, it can withstand 100% of the rated current;

●Main contact wear indicator;

●Auxiliary circuit plug-in system with SIGUT screw terminals, including all auxiliary circuit wiring terminals, such as coding devices, to prevent incorrect plugging of fixed air circuit breakers;

●Mechanical "trip" indicator for electronic tripping device;

●Mechanical closing and locking device after tripping;

●The control panel cannot be removed when the Siemens circuit breaker 3WL is in the closing position.

Siemens withdrawable air circuit breaker has the following additional functions:

●Main circuit connection terminals: laminated terminals on the drawer base and terminals on withdrawable circuit breakers;

●The position indicator on the control panel of the withdrawable circuit breaker;

●Manual crank handle for moving withdrawable circuit breaker;

●Drawer seat with guide rail, easy to move withdrawable circuit breaker;

●Lock the withdrawable circuit breaker to prevent it from sliding out from the installation position;

●Withdrawable circuit breaker cannot be moved when it is in the closing position;

●Different codes for the rated current of the drawer base and withdrawable circuit breaker.

Siemens 3WL circuit breakers meet the following standards:

●IEC60947-1, IEC60947-2;

●EN60947-1, EN60947-2;

●Weather resistance, conform to IEC60068-2-30.

Siemens Air Circuit Breaker 3WL Selection Instructions

Transmitter|Encoder|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

Important parameters of Siemens air circuit breaker 3WL

Circuit breaker specifications:

●Rated current 630A to 6300A;

●3 frame levels;

●3 pole and 4 pole frame;

●The rated working voltage is up to 690VAC and 1000VDC, and the special frame is up to 1000VAC and 1150VAC;

●There are 4 different breaking capacity levels for AC applications, ranging from 55kA to 150kA, and 1 breaking capacity level for DC applications.

Siemens 3WL air circuit breaker is equipped with operating mechanism (manual energy storage operating mechanism with mechanical closing), electronic trip unit and auxiliary contacts (standard with 4 normally open contacts + 4 normally closed contacts) Can be equipped with auxiliary release.

The size difference of Siemens 3WL circuit breaker of uniform size is reflected in the width, which will vary with the number of poles and frame level. In terms of design, the size of the withdrawable circuit breaker depends on the size of the slightly larger withdrawable base.

The circuit breaker has different operating mechanism options:

●Manual energy storage operating mechanism with mechanical closing function;

●Manual energy storage operating mechanism with mechanical and electrical closing;

●Electric operating mechanism with mechanical and electrical closing (standard configuration);

The operating mechanism with electrical closing is suitable for synchronous applications.

The technical parameter table of Siemens air circuit breaker 3WL is shown in the figure below:

Transmitter|Encoder|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

The breaking capacity of Siemens air circuit breaker 3WL is shown in the figure below:

Transmitter|Encoder|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

Note:

B: Basic breaking capacity B (Icu=Ics to 55kA at 500V);

N: Normal breaking capacity N (Icu=Ics to 66kA at 500V);

S: Standard breaking capacity S (Icu = Ics to 80kA at 500V);

H: High breaking capacity H (Icu=Ics to 100kA at 500V);

C: Ultra-high breaking capacity C (Icu=Ics to 150kA 3 poles /130kA 4 poles at 500V);

DC: DC breaking capacity circuit breaker;

1. Frame II, when In max≤2500A;

2. Box II, when In max=3200A and In max=4000A;

3. When the rated voltage is 690V, the Icw of the circuit breaker cannot be greater than the Icu or I cs when the rated voltage is 690V;

4. Rated working voltage Ue=1150V;

5. In the case of -ZA16 accessory, the voltage parameter of 690V+20% is also the same value.

Siemens air circuit breaker 3WL structure composition

The structure diagram of 3WL fixed circuit breaker is as follows:

Transmitter|Encoder|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

Note:

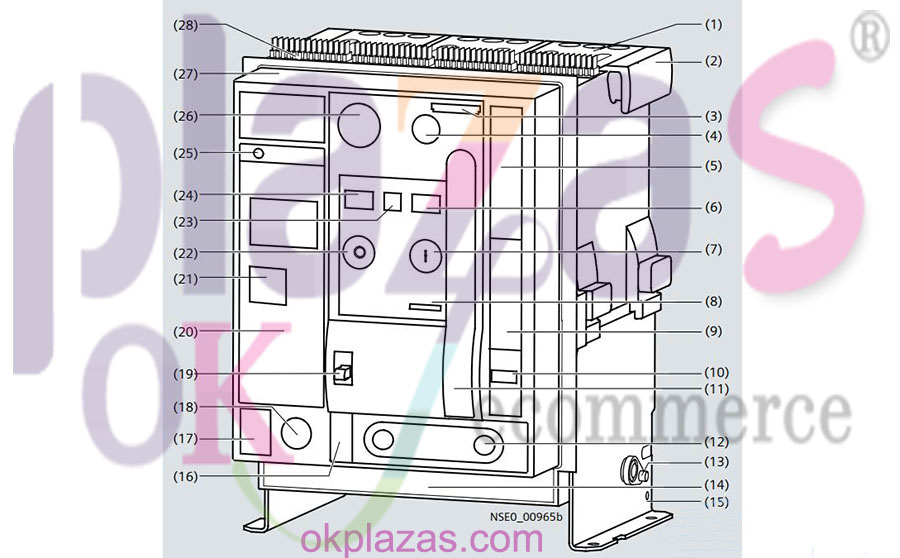

1. Arc extinguisher; 2. Carrying handle; 3. Label plate; 4. Motor cut-off switch or "Electrical closing" button (optional); 5. Circuit breaker nameplate; 6. Energy storage status indicator; 7. Mechanical closing button; 8. Rated current indication; 9. Positioning diagram; 10. Action counter (optional); 11. Operating handle; 12. Telescopic swing-out handle; 13. Withdrawable drive shaft; 14. Equipment Panel; 15. Ground connection; 16. Position indicator; 17. Parameter table for ground fault protection; 18. Safety lock for crank handle (optional); 19. Mechanical unlocking device for crank handle (optional Optional); 20. Electronic trip unit; 21. Rated current plug-in module; 22. "Mechanical opening" button or "emergency stop" mushroom button (optional); 23. Ready to close indicator; 24. Touch Head position indicator; 25, trip indicator (reset button); 26, "safe opening" locking device (optional); 27, operation panel; 28, auxiliary connection plug.

The structure diagram of 3WL withdrawable circuit breaker is as follows:

Transmitter|Encoder|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

Note:

1. Arc extinguishing cover (optional); 2. cooling holes; 3. hook opening; 4. safety baffle (standard); 5. locking device (safety baffle) (optional); 6. drawer seat Nameplate; 7. Isolation contact 8. Grounding terminal φ14mm; 9. Frame rail locking device; 10. Locking device to prevent movement when the control cabinet door is opened (optional); 11. Door interlock of drawer seat (optional) ; 12. Rack rail; 13. Factory set rated current code; 14. Circuit breaker grounding sliding contact (optional); 15. Equipment code (optional); 16. Safety baffle actuator (optional); 17 , Position indicator switch (optional); 18. Movable contact module for auxiliary wires (the number depends on the device).

The structural composition diagram of Siemens air circuit breaker 3WL power distribution system is shown below:

Transmitter|Encoder|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

Note:

1. Drawer; 2. Main circuit connection busbar: front connection, flange connection, horizontal rear, vertical rear; 3. Position signal contact; 4. Ground contact, front; 5. Safety baffle; 6. , COM15 PROFIBUS module or COM16 MODBUS module; 7. External CubicleBUS module; 8. Closing coil, auxiliary release; 9. Auxiliary terminal plug-in system; 10. Auxiliary circuit wiring terminal; 11. Door sealing frame; 12. Base plate Interlocking device; 13, transparent cover, functional plug-ins; 14, emergency stop button, with safety lock; 15, electric operating mechanism; 16, operation cycle counter; 17, circuit breaker status sensor (BSS); 18, electronic off ETU protection device; 19, remote reset coil; 20, circuit breaker data adapter (BDA); 21, 4-line liquid crystal display module; 22, ground fault protection module; 23, rated current plug-in module; 24, measurement function Module; 25, Siemens air circuit breaker.

The above is a sample of Siemens air circuit breaker 3WL operation manual, I hope it can help everyone
