What is the composition of the type c female interface

The type c female is a commonly used data transmission port on the market. It is a kind of USB interface, which is mainly suitable for the transmission of power, audio and video signals. Whether it is a computer, tablet, speaker or mobile phone, it will be used. Type c female interface includes 16pin, 24pin, patch, vertical, horizontal, plug-in board, sinking board, and other specifications, fast transmission speed, stable and reliable operation, and can also play a waterproof role. The following editor will introduce the composition of the type c female connector through several type c specifications. The specific content is as follows.

Type c female USB-C-04 specifications

Insertion force: 5～20N

Withstand voltage: 100V AC

Life: 10000 times

Insulation resistance: ≥100MΩ

Contact resistance: ≤0.04Ω

Operating temperature range: -55～85℃

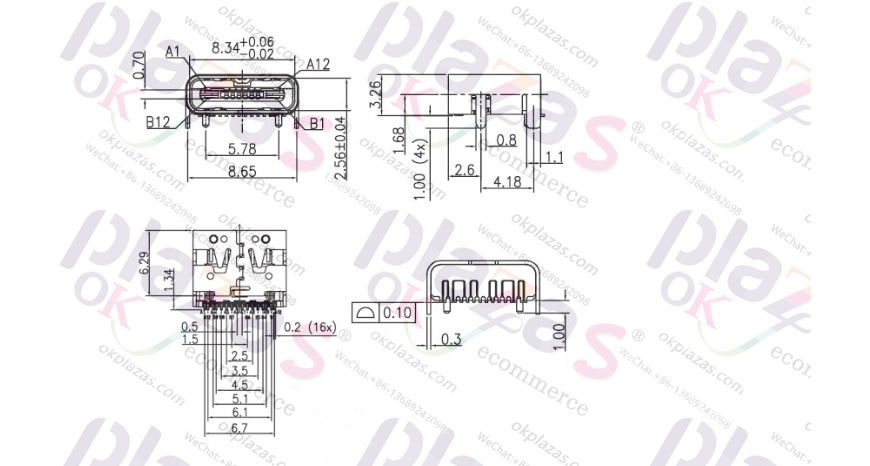

Type c female USB-C-04 specification drawing

Encoder|Transmitter|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

Type c female USB-C-09 specifications

Separation: 8～20N

Insertion force: 5～20N

Insulation resistance: ≥100MΩ

Contact resistance: ≤0.04Ω

Life: 10000 times

Working temperature: -30℃~85℃

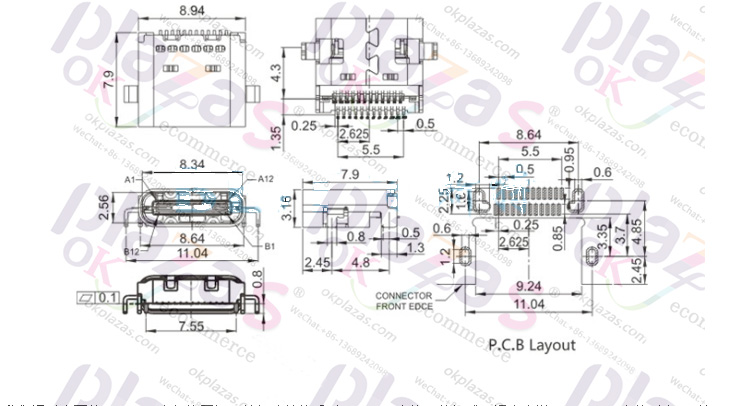

Type c female USB-C-09 specification drawing

Encoder|Transmitter|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

We can clearly see the composition of the type c female connector through the above type c female connector specification drawing. Generally speaking, the pin specifications of TYPE C female socket include: 6P, 12P, 16P, 14P, 24P. Since data transmission and current transmission ultimately rely on these pin terminals to connect, the pin pin is a very important piece of data, which is equivalent to the core of the connector
