Parameter introduction and selection skills of DC socket

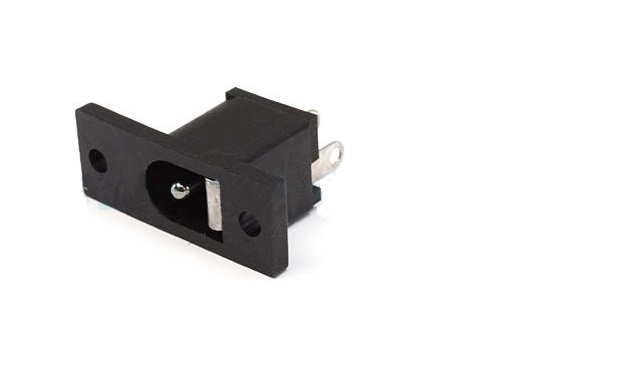

DC sockets are widely used in our lives. We generally classify them according to specifications and models. For example, the commonly used DC socket models mainly include: DC-012, DC-013A, DC-003, DC-031A , DC-019, DC-018, DC-021, DC-013, DC-003A, DC-005, DC-005B, DC-011, DC-023, DC-025, DC-025M, DC-044, DC -049, DC-005C, DC-098, DC-033, DC-006, etc. It is recommended that you pay attention to the selection of DC sockets. Products of different specifications and models have different performance and uses. Secondly, they should be stopped or changed in time when using the sockets with excessive temperature or arcing or ignition to ensure that the plug and The socket is in good contact and the plug is inserted into the socket with a moderate tightness. Do not artificially change the size or shape of the socket to match the specifications and dimensions of the wall socket. Let me give you a brief introduction to a few commonly used products! (1)DC socket DC-016

Encoder|Transmitter|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

DC socket DC-016 reference drawing:

Encoder|Transmitter|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

Product introduction of DC socket DC-016:

　　 The rated value of the DC power socket DC-016 is DC30V 0.5A, and the insertion force is 3 to 20N. It is a plug-in DC power socket with two pin core diameters of 2.0/2.5mm and 3 pins. The life span is 5000 times, please refer to the parameter description of DC-016 for details.

　　 Application areas: TV sets, speakers, radio cassette recorders, computers and other household appliances and electronic equipment.

　　DC socket DC-016 technical parameters:

　　Environmental temperature: 15~35℃

　　 Rating: DC 12V 1A

　　 Insertion force: 2.94~29.4N

　　 Pull out force: 2.94~29.4N

　　 Pressure: 86kPa~106kPa

　　Relative humidity: 25%~80%

　　Contact resistance: ≤0.03Ω

　　 Insulation resistance: ≥100MΩ

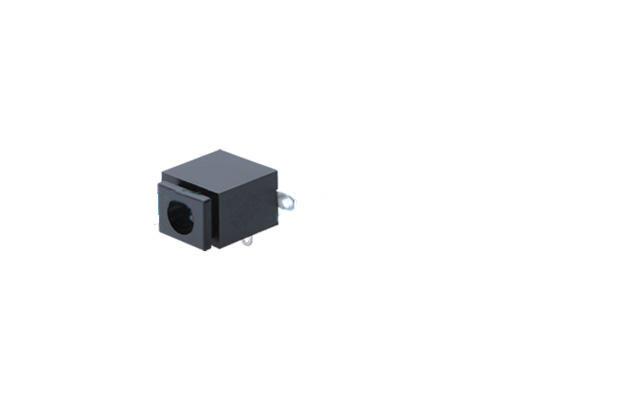

(2)DC socket DC-019

Encoder|Transmitter|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

DC socket DC-019 reference drawing:

Encoder|Transmitter|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

Product introduction of DC socket DC-019:

　　DC socket DC-019 technical parameters:

　　Environmental temperature: 15~35℃

　　 Insertion force: 2.94~29.4N

　　 Pull out force: 2.94~29.4N

　　Contact resistance: ≤0.03Ω

　　 Insulation resistance: ≥100MΩ

　　 Pressure: 86kPa~106kPa

　　Relative humidity: 25%~80%

　　 Rating: DC 12V 1A

(3)DC socket DC-009

Encoder|Transmitter|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

DC socket DC-009 reference drawing:

Encoder|Transmitter|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

Product introduction of DC socket DC-009:

　　 dc power socket DC-009 main application areas: televisions, speakers, radio cassette recorders, computers and other household appliances and electronic equipment.

　　DC socket DC-009 technical parameters:

　　Environmental temperature: 15~35℃

　　 Pressure: 86kPa~106kPa

　　Relative humidity: 25%~80%

　　 Rating: DC 12V 1A

　　 Insertion force: 2.94~29.4N

　　 Pull out force: 2.94~29.4N

　　Contact resistance: ≤0.03Ω

　　 Insulation resistance: ≥100MΩ

(4)DC socket DC-006

Encoder|Transmitter|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

DC socket DC-006 reference drawing:

Encoder|Transmitter|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

Product introduction of DC socket DC-006:

　　 The rated value of DC power socket DC006 is DC12V1A, the insertion force is 2.94 to 29.4N, it is a plug-in DC power socket. Refer to the drawing description of DC-006 for details.

　　DC socket DC-006 technical parameters:

　　 Insertion force: 2.94~29.4N

　　 Pull out force: 2.94~29.4N

　　Contact resistance: ≤0.03Ω

　　Environmental temperature: 15~35℃

　　 Pressure: 86kPa~106kPa

　　Relative humidity: 25%~80%

　　 Rating: DC 12V 1A

　　 Insulation resistance: ≥100MΩ

(5)DC socket DC-005C

Encoder|Transmitter|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

DC socket DC-005C reference drawing:

Encoder|Transmitter|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

Product introduction of DC socket DC-005C:

　　 DC power socket DC-005C rated value DC30V0.5A, insertion force is 3-25N, needle core diameter specification: inner core size φ1.3mm, plastic material: PBT UL94V-0 flame retardant / high temperature resistance / environmental protection.

　　DC socket DC-005C technical parameters:

　　 Environment temperature: 5~35℃

　　 Pressure: 86kPa~106kPa

　　 Insertion force: 3~25N

　　 Pull out force: 3~25N

　　 Contact resistance: ≤0.05Ω

　　 Insulation resistance: ≥100MΩ

　　Relative humidity: 45%~85%

　　Rated value: DC 30V 0.5A

　　 The above is the introduction of the performance and specification parameters of DC sockets DC-016, DC-019, DC-009, DC-006, DC-005C and other products. In addition, it is recommended that you should ask a technician to change the DC socket power cord or plug. Secondly, when purchasing a DC socket, check the logo on the power socket: specification model, company name, rated current value, power source symbol and related Can the warnings etc. be complete? Generally, a socket with a small rated current value cannot be plugged into a high-power household appliance. The plug and socket should match, and there should be no looseness. It does not require too much effort when unplugging. The plug and socket should be selected according to the power of the appliance, and the power Two electrical appliances cannot be used in one socket at the same time.
