Specializing in the production of adjustable resistor 102_complete models_quality assurance

The adjustable resistor 102 refers to a resistor with a resistance value of 10×10 2 ohms, that is, a resistor with a resistance value of 1000 ohms. There are many models of adjustable resistor 102, the commonly used ones are 3296W, 3590S, 3386PM, 3386PL, 3362U, 3386H, RM100-V1, 93PER, RM100-H1, RM060-V1, RM060-H1, RM150-V1, RM150 -H1 etc. In addition to the adjustable resistor 102, we also distinguish 101 adjustable resistors, 103 adjustable resistors, and 201 adjustable resistors based on the resistance value. Generally, products with different resistance values are different in performance and use. When we suspend the resistor, we must see the product specifications, model, resistance value and other information, and choose reasonably according to our actual needs! Then The following editor will introduce you to a few commonly used models of products!

(1)Adjustable resistor 102_3296W

Encoder|Transmitter|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

Adjustable resistor 102_3296W_ specification drawing:

Encoder|Transmitter|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

Adjustable resistor 102_3296W_ technical parameters:

　　 adjustable resistor 102_3296W_ performance:

　　 Resistance range (Ohms): 10~2M

　　 Resistance deviation: ±10%

　　 Insulation resistance: R1≥1GΩ

　　 Withstand voltage: 101.3Kpa 600V, 8.5Kpa 250V

　　 Effective electrical stroke: 25± 2turns

　　 Resistance change characteristics: B

　　Terminal resistance: ≤1%R or 2Ω

　　Contact resistance change: ≤3%R or 3Ω

　　 Adjustable resistor 102_3296W_Environmental characteristics:

　　Rated power (working voltage 300V): +70℃ 0.25W, +125℃ ow

　　Working temperature range: -55℃ ~+125℃

　　 Temperature coefficient: ±200ppm/℃

　　 Temperature change: △R≤±2%R,△(Uab/Uac)R≤±2%

　　Collision: 390m/s2, 4000 times, △R≤±2%R

　　70℃ electrical durability: 0.5W, 1000h △R≤±3%R

　　 Mechanical durability: 50cycles, △R≤±3%R

　　 Steady-state damp heat: △R≤±3%R, R1≥100MΩ

　　Vibration: 10~500Hz, 0.75mm or98m/s, 6h△R≤±1%R,△(Uab/Uac)≤±2%

　　 Climate order: △R≤±3%R, R1≥100MΩ

　　 Adjustable resistor 102_3296W_Physical characteristics:

　　Total mechanical performance: 28± 2turns

　　 Starting torque: ≤36mN•m

　　Standard packaging: 50pcs/tube

　　Stop torque: ≥36 mN•m

(2)Adjustable resistor 102_RM100-V1

Encoder|Transmitter|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

Adjustable resistor 102_RM100-V1_Reference drawing:

Encoder|Transmitter|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

Adjustable resistor 102_RM100-V1_ technical parameters:

　　 adjustable resistor 102_RM100-V1_ performance:

　　 Resistance range (Ohms): 100~2M

　　Terminal resistance: R<50K 20ΩMAX

　　R≥50K 50ΩMAX

　　 Resistance deviation: ±20%

　　 Resistance change characteristics: B

　　 Rated power: 0.15W(50°)

　　Using voltage: 50VAC 20VDC

　　 adjustable resistor 102_RM100-V1_ mechanical properties: 　　 rotation angle: 240°± 5°

　　 Mechanical durability: 10000cycles

　　 Starting torque: 3~20 mN•m

(3)Adjustable resistor 102_3362U

Encoder|Transmitter|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

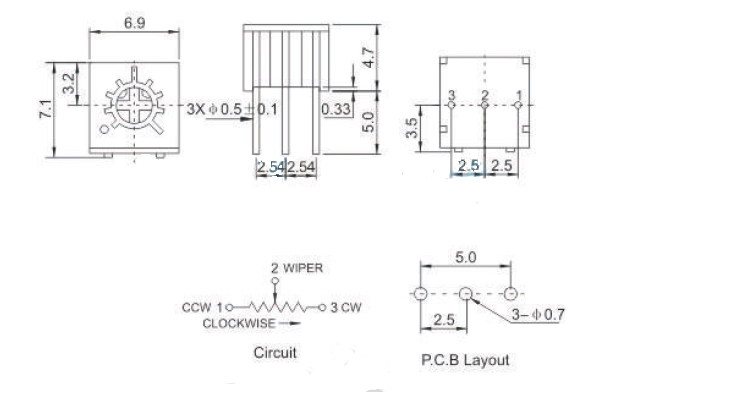

Adjustable resistor 102_3362U_Reference drawing:

Encoder|Transmitter|Soft starter|Power supply|VFD|Light curtain|Servo products|Human-machine interface|Solenoid valve|Cylinder|Actuator|Flow meter|Transformer|Thyristor|Sensor|Deceleration drive gearbox reducer|Linear guide|Circuit breaker|Refrigeration compressorAll industrial products of okplazas are purchased from the original factory or formal channels of agents to ensure the original authenticity, which perfectly solves the problem of industrial product sample procurement and small-batch procurement for the majority of engineers and purchasing personnel.

Adjustable resistor 102_3362U_Product introduction:

　　 Structure: Single-turn potentiometer

　　 Feet: Arranged in a corner

　　 size: 6.5×6.5×4.7

　　Application: radio, air conditioner, communication products, security, medical equipment and other fields

　　 Foot distance: 5×2.5

　　Adjustment method: top adjustment

　　 adjustable resistor 102_3362U_ technical parameters:

　　 adjustable resistor 102_3362U_ performance:

　　 Resistance range: 10~1M

　　 Resistance deviation: ±10%

　　 Insulation resistance: R1≥1GΩ

　　 Withstand voltage: 101.3Kpa 600V, 8.5Kpa 350V

　　 Resistance change characteristics: B

　　Terminal resistance: ≤1%R or 2Ω

　　Contact resistance change: ≤3%R or 3Ω

　　 Effective electric stroke: 260°

　　 Adjustable resistor 102_3362U_Environmental characteristics:

　　 Rated power (working voltage 300V): +70℃ 0.5W, +125℃ ow

　　Working temperature range: -55℃ ~+125℃

　　70℃ electrical durability: 0.5W, 1000h △R≤±3%R

　　 Mechanical durability: 50cycles, △R≤±3%R

　　 Steady state humidity: △R≤±3%R, R1≥100MΩ

　　 Temperature coefficient: ±200ppm/℃

　　 Temperature change: △R≤±2%R,△(Uab/Uac)R≤±2%

　　Collision: 390m/s2, 4000uqw, △R≤±2%R

　　Vibration: 10~500Hz, 0.75mm or98m/s2, 6h△R≤±1%R,△(Uab/Uac)≤±2%

　　 Climate order: △R≤±3%R, R1≥100MΩ

　　 Adjustable resistor 102_3362U_Physical characteristics:

　　Total mechanical stroke: 280°

　　Stop torque: ≥50 mN•m

　　 Standard packaging: 50pcs/tube

　　 Starting torque: ≤20mN•m

　　 The above is an explanation of several commonly used models of adjustable resistor 102. Generally, each type of adjustable resistor 102 has a certain resistance value, which indicates the resistance of the resistance to current flow. It plays the role of dividing voltage in daily circuits. Relative to contact signals, both AC and DC signals can pass through resistors. Therefore, when testing with multi-function meter tools, the appropriate resistance gear should be selected according to the resistance value of the adjustable resistor. The adjustable resistor 102 and other resistance models produced by our manufacturer are not only affordable, but also guaranteed in quality. Welcome to buy!
