Correct wiring method of encoder:

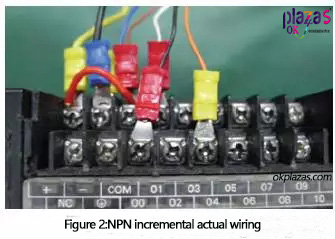

(1)Correct wiring is essential. Figure 1 shows the wiring principle of NPN output incremental E6B2-CWZ6C. Figure 2 shows the actual wiring of NPN output incremental E6B2-CWZ6C. The brown wire is connected to the positive pole of the power supply and the blue wire is connected The negative of the power supply, the black wire is connected to the input 0.00, the white wire is connected to the input 0.01, the orange wire is connected to the input 0.04, and the COM of the PLC is connected to the positive power supply.

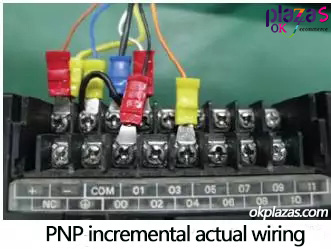

(2)The figure below is the actual wiring diagram of the PNP output incremental E6B2-CWZ6B. The brown wire is connected to the positive pole of the power supply, the blue wire is connected to the negative pole of the power supply, the black wire is connected to the input 0.00, the white wire is connected to the input 0.01, and the orange wire is connected to the input 0.04. Connect the COM of PLC to the negative pole of the power supply.

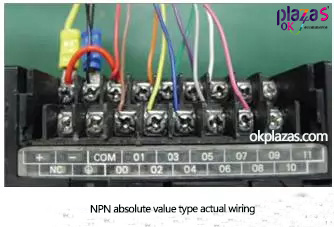

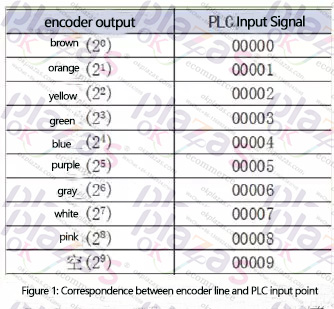

(3)Figure 1 is the corresponding diagram of the absolute encoder line and the PLC input point, Figure 2 is the actual wiring diagram of the NPN output absolute value E6C3-AG5C, the red wire is connected to the positive pole of the power supply, and the black wire is connected to the negative pole of the power supply Brown wire to input 0.00, orange wire to input 0.01, yellow wire to input 0.02, green wire to input 0.03, blue wire to input 0.04, purple wire to input 0.05, gray wire to input 0.06, white wire to input 0.07, pink Wire input is 0.08, and PLC COM is connected to the positive pole of the power supply.

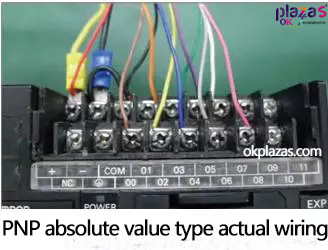

(4)The figure below is the actual wiring diagram of PNP output absolute value type E6C3-AG5B, the red wire is connected to the positive pole of the power supply, the black wire is connected to the negative pole of the power supply, the brown wire is connected to the input 0.00, the orange wire is connected to the input 0.01, the yellow wire is connected to the input 0.02, green The wire is connected to input 0.03, the blue wire is connected to input 0.04, the purple wire is connected to input 0.05, the gray wire is connected to input 0.06, the white wire is connected to input 0.07, the pink wire is connected to input 0.08, and the COM of the PLC is connected to the negative pole of the power supply.

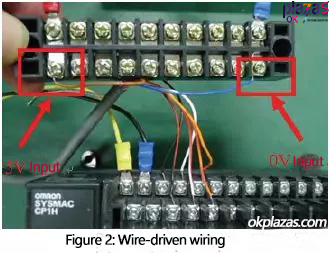

(5)Figure 1 is the wiring principle of the line drive encoder, Figure 2 is the actual wiring diagram, the black wire is connected to A0+, the black and red border wire A0-, the white wire is connected to B0+, the white and red border wire is connected to B0-, and the orange wire is connected to Z0+ , The orange-red fringe wire is connected to Z0-, the brown wire is connected to the power supply +5V, and the blue wire is connected to the power supply 0V. Do not make mistakes.
